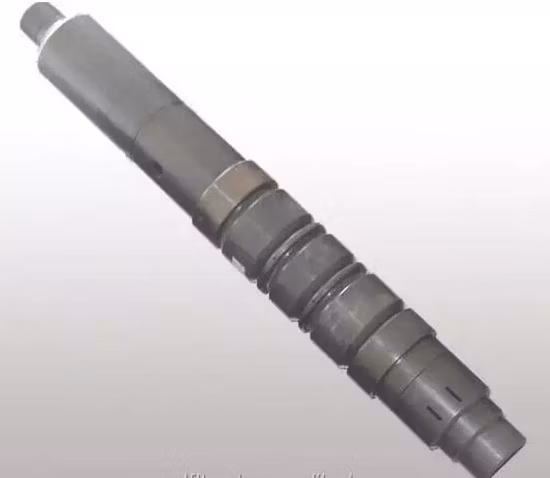

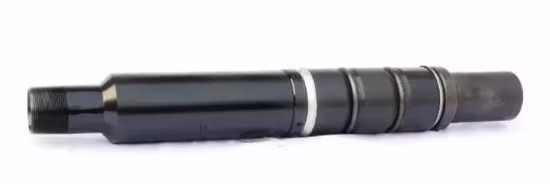

Completion Tools Y111 Packer for Oil Well Drilling Tools
Basic Info.
| Model NO. | Y111 Packer |
| Use | Well Drilling |
| Type | Packer |
| Certification | API |
| Transport Package | Wooden Case |
| Specification | According to the custom |
| Trademark | Tolian |
| Origin | China |
| HS Code | 8431431000 |
| Production Capacity | 1000piece/Month |
Product Description
Product Description
High Quality Y111 Packer for Oil Well
High Quality Y111 Packer Oilfield Y111 packer
1.Simple structure
2.reliable sealing
3.convinient to use
High Quality Y111 Packer for Oil Well
Tech Data
Type | Max OD mm | ID mm | Pressure differential MPa | Tmperature °C | Sealing Force KN | Length mm | Casing |
Y111-110 | 110 | 50 | 25-50 | 120-150 | 100-120 | 820 | 118-121 |
Y111-114 | 114 | 50 | 25-50 | 120-150 | 100-120 | 820 | 121-124 |
Y111-148 | 148 | 60 | 25-50 | 120-150 | 100-120 | 900 | 7 inch |
1. Application
Y111 packer is mainly used to oil extraction by layer, leakage detection, plugging, and formation testing and so on.
It's normally used together with mechanical slip packer or pipe anchor, or used separately when it's supported by the
bottom of the well.
2. Structure and Principle
It consists of upper joint, rubber barrel, central pipe, limit block, lower joint and so on.
It's supported by tail pipe or slip packer. When lowering the column, upper joint and central pipe goes down to press
the rubber barrel and finish setting. Pulling the column and rubber barrel retracts when releasing.
3. Characteristics
Simple structure and easy to operate.
